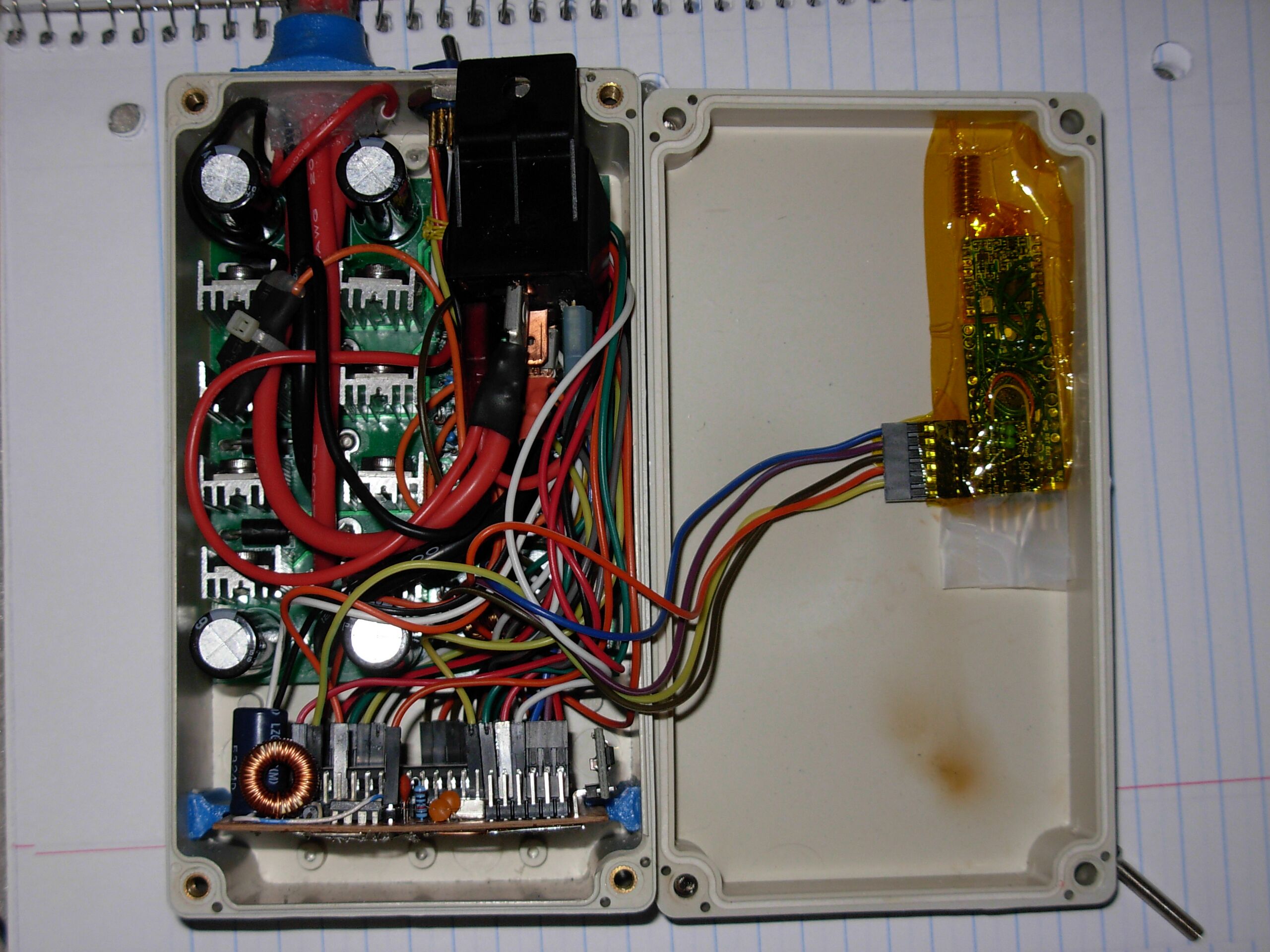

The current (Aug 2019) incarnation of the project, showing the inside of the H-bridge module (the main electronics that ride on the robot platform). Messy, but does work quite well. From left, the H bridge PCB, main power relay, and LoRa radio module, with the Atmega1284 controller board at the bottom.
