September update - clock accuracy

2018-09-22 | [envilog]
previous: Low Power Environment Monitor - next: 3 year update

This is part of my environmental logger project originally posted on hackaday.io

clock

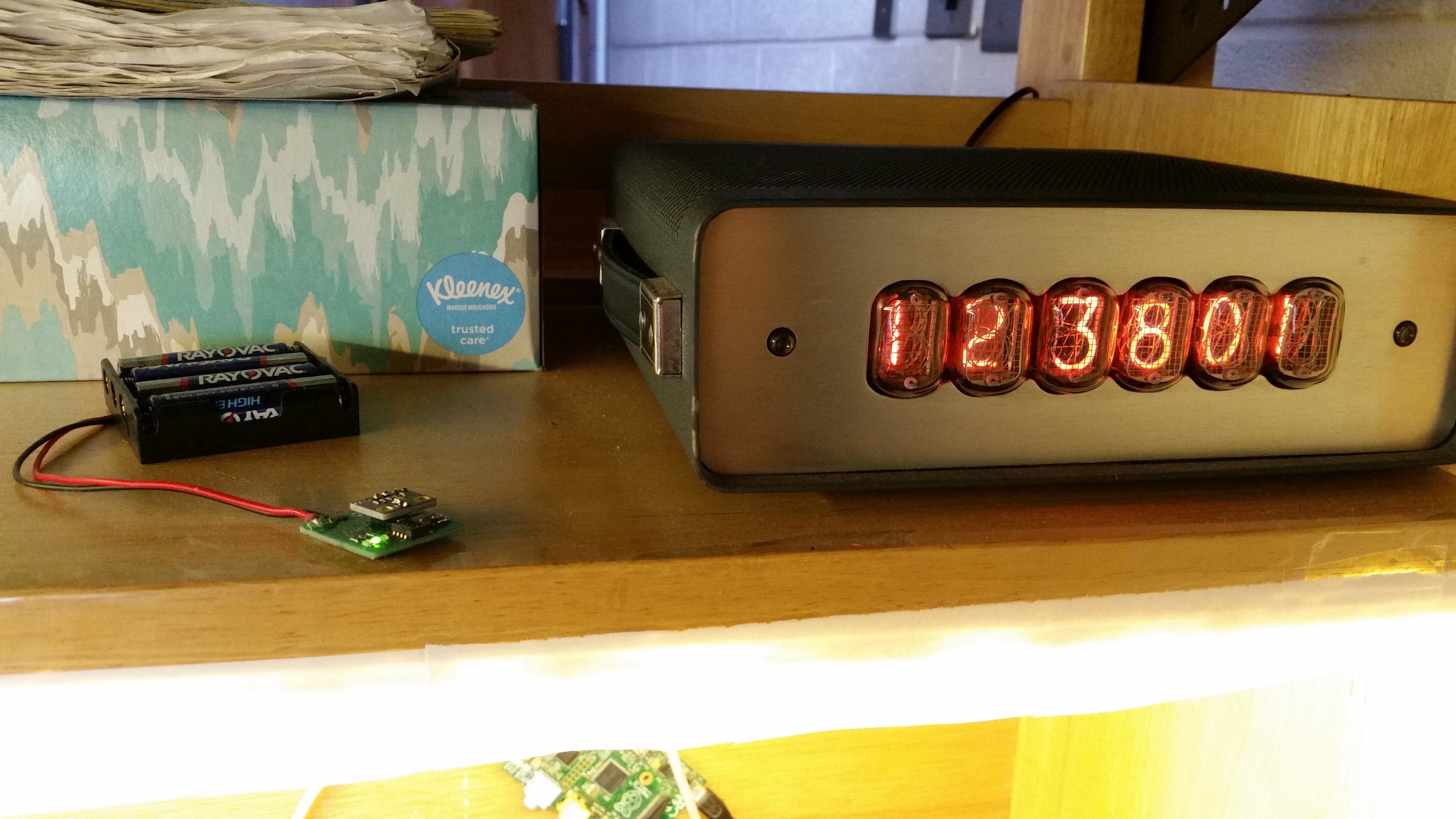

I've been running this one board since mid-August, but since the beginning of this month I have not removed the batteries or set the clock, which marks the longest time so far that the system has been running continuously. I downloaded the recorded data and found it contains not a single error. However, I noticed a discrepancy today between my board and my other clock, of just over a second (the board is set up to take a measurement every minute on the minute, and will blink the green light as an indication). The DS3232M's datasheet specifies an accuracy of 5 PPM, so one second over this timeframe is well within spec. However, tuning in to WWV on the radio revealed that the board was dead on accurate; it was the Nixie clock that had drifted. The Nixie clock uses one of those counterfeit DS3231 modules from China as it's clock source. While the discrepancy is within spec, it is still the genuine Maxim chip in the logger board that has proved to be more accurate.
